Anenji 4.2W 24V Hybrid Solar Inverter On grid Off grid Inverter with WIFI 120A MPPT Dual Outputs

About this product

• ANJ-4200W-24V-W Manual: ANJ-4200W-24V-W
• MODEL
• ANJ-4200W-24V-W
• Input Voltage Waveform
• Sinusoidal (utility or generator)
• Nominal Input Voltage
• 230Vac
• Low Loss Voltage
• 170Vac+7V (UPS) 90Vac+7V (Appliances)
• Low Loss Return Voltage
• 180Vac+7V (UPS);100Vac+7V (Appliances)
• High Loss Voltage
• 280Vac±7V
• High Loss Return Voltage
• 270Vac±7V
• Max AC Input Voltage
• 300Vac
• Nominal Input Frequency
• 50Hz / 60Hz (Auto detection)
• Low Loss Frequency
• 40+1Hz
• Low Loss Return Frequency
• 42+1Hz
• High Loss Frequency
• 65+1Hz
• High Loss Return Frequency
• 63+1Hz
• Output Short Circuit Protection
• Battery mode: Electronic Circuits
• Efficiency (Line Mode)
• >95% (Rated R load, battery full charged )
• Transfer Time
• 10ms typical (UPS); 20ms typical(Appliances)
• Rated Output Power
• 4.2KVA/4.2KW
• Dual output function
• Yes
• Max.main output power
• 4.2KVA/4.2KW
• Max.second output power
• 4.2KVA/4.2KW
• Output Voltage Waveform
• Pure Sine Wave
• Output Voltage Regulation
• 230Vac±5%
• Output Frequency
• 50Hz or 60Hz
• Peak Efficiency
• 94%
• Surge Capacity
• 2* rated power for 5 seconds
• Nominal DC Input Voltage
• 24Vdc
• Cold Start Voltage
• 23.0Vdc
• Utility Charging Mode
• Max Charging Current(PV+AC)
• 120Amp
• Max Charging Current(AC)
• 120Amp
• Flooded Battery
• 29.2Vdc
• AGM/Gel Battery
• 28.2Vdc
• Floating Charging Voltage
• 27Vdc
• Overcharge Protection
• 32Vdc
• Battery reverse connection protectior
• No
• Charging Algorithm
• 3-Step

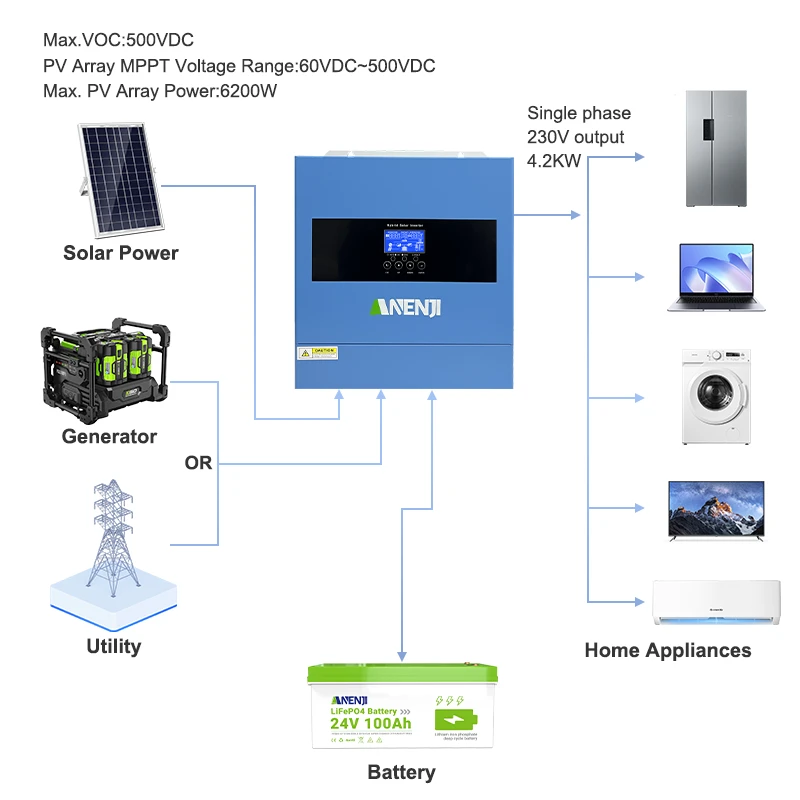

• Solar Input
• Rated Power
• 6200W
• Max. PV Array Open Circuit Voltage
• 500Vdc
• PV Array MPPT Voltage Range
• 60Vdc~500Vdc
• Max. Input Current
• 27A
• Max. Charging Current(PV)
• 120A
• General Specifications
• Operating Temperature Range
• -10°Cto 55°C
• Storage temperature
• -15°C~60°C
• Humidity
• 5% to 95% Relative Humidity (Non-condensing)
• Dimension(D*W*H), mm
• 350x312x114
• Net Weight, kg
• 6.9
