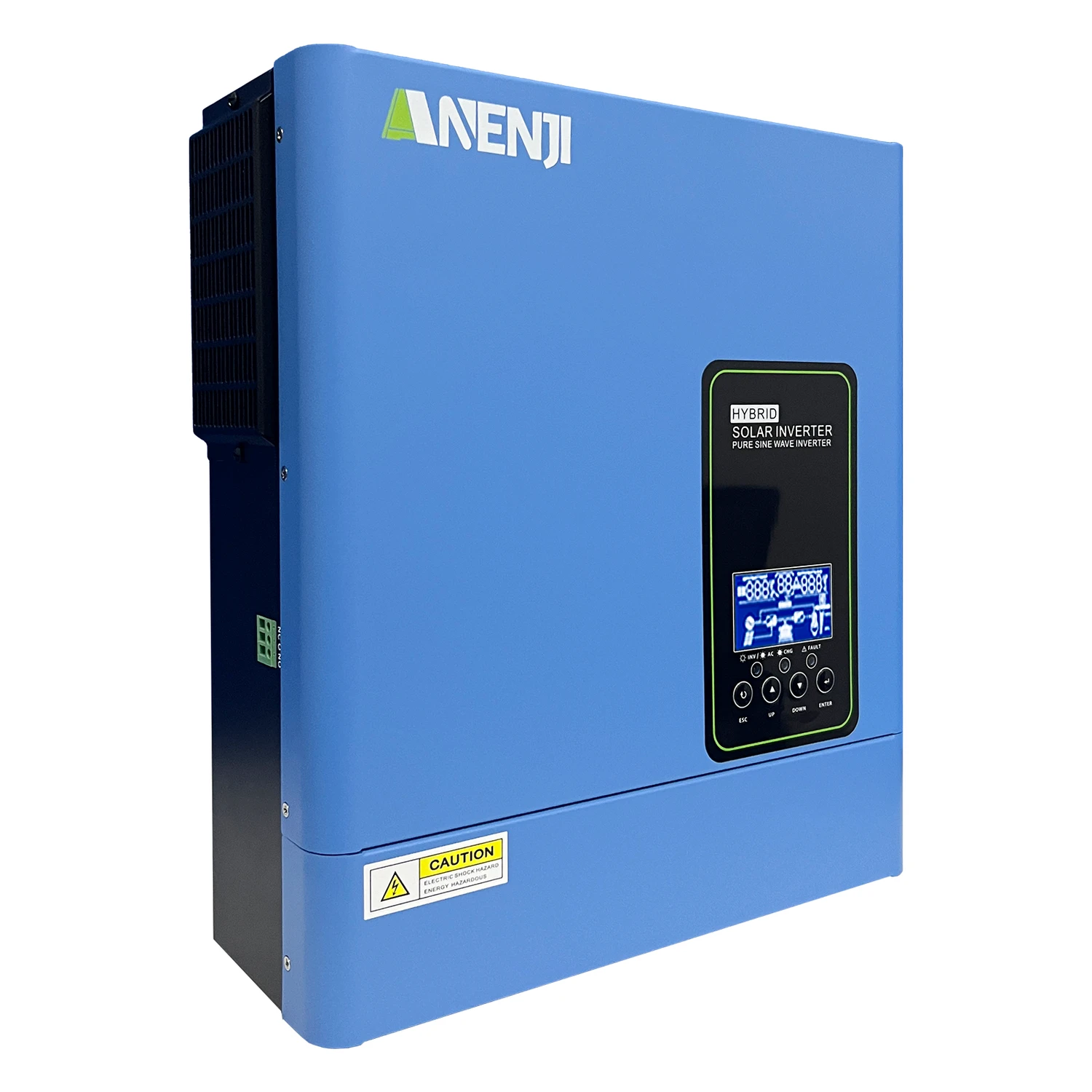

Anenji 3KW 24V Hybrid Solar Inverter On grid Off grid Inverter with WIFI

About this product

• ANJ-3KW-24V-LV-WIFI User Manual MODEL ANJ-3KW-24V-WIFI Capacity 3KVA/3KW Parallel Capability NO Split phase operation NO INPUT Nominal Voltage 110/120VAC Acceptable Voltage Range 95-140VAC(For personal Computer);70-140VAC(For Home Appliances) Frequency 50/60 Hz(Auto sensing) OUTPUT Nominal Voltage 110/120VAC+5% Surge Power 6000VA Frequency 50/60Hz Waveform Pure Sine wave Transfer Time 10ms(For personal Computer);20ms(For Home Appliances) Peak Efficiency(PV to INV) 97% Peak Efficiency(Battery to INV) 93% Overload Protection 5s@>=140% load; 10s@110%~140% load Crest Factor 3:1 Admissible Power Factor 0.6~1(inductive or capacitive) BATTERY Battery Voltage 24VDC Floating Charge Voltage 27VDC Over Charge Protection 33VDC Charging Method CC/CV Solar Charger & AC Charger Max.PV Array Power 4000W Solar Charger Type MPPT Max.PV Array Open Circuit Voltage 500 VDC PV Array MPPT Voltage Range 60VDC~450VDC Max.Solar Input Current 27A Max.Solar Charge Current 100A Max.AC Charge Current 80A Max.Charge Current 100A PHYSICAL Dimensions,D x W x H(mm) 312.4x350x114.5 Package Dimensions,D xW x H(mm) 475x390x180 Net Weight(Kg) 8.5 Communication interface Dry contact+RS485+WIFI ENVIRONMENT Operating Temperature Range -10'Cto 50°C Storage Temperature -15°C°C~ 50°C°C Humidity 5% to 95% Relative Humidity(Non-condensing) Ingress Protection IP21
